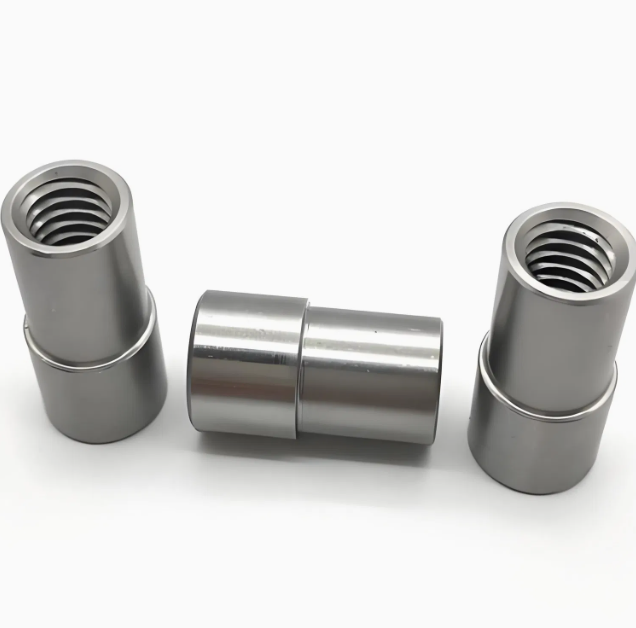

Precision Steel Tube Machining Service for Shaft and Sleeve

Product Name

Precision Steel Tube Machining Service for Shaft and Sleeve

Model Series

GH-PTMS-SS Series

Product Overview

Gilan Hardware Private delivers high-precision machining services for steel tube-based shafts and sleeves, transforming raw seamless or welded tubing into finished components with micron-level accuracy. Utilizing advanced CNC turning centers, deep-hole honing systems, and cylindrical grinders, we manufacture critical tubular parts including piston sleeves, hollow drive shafts, guide bushes, and bearing housings. Our integrated process chain—from tube cutting to final surface treatment—ensures consistent dimensional integrity and superior surface quality for demanding mechanical applications.

Technical Specifications

Process Capabilities

• Outer Diameter Range: Ø10 mm – Ø120 mm




• Maximum Machining Length: 800 mm




• Dimensional Tolerance: up to IT6 grade




• Geometric Accuracy: Straightness ≤ 0.05 mm/m; Roundness ≤ 0.005 mm




• Surface Roughness: Ra 0.1 – 1.6 μm (achievable via honing/grinding)




Supported Materials

• Carbon Steel: 20#, 45#, SAE 1018, SAE 1045, ST35, ST45




• Alloy Steel: 40Cr, 42CrMo, 20CrMnTi, 16MnCr5




• Stainless Steel: 304, 316L (upon request)




Machining Operations

• CNC Turning & Boring




• Deep Hole Honing & Skiving




• Internal/External Grinding




• Keyway Milling & Cross Drilling




• Threading (Internal & External)




Heat Treatment & Finishing

• Thermal Processing: Annealing, Normalizing, Induction Hardening, Quenching & Tempering




• Surface Protection: Chrome Plating (Hard/Decorative), Black Oxide, Phosphating, Zinc Plating, Anti-corrosion Oil




Quality Management

• Certifications: IATF 16949, ISO 9001:2015




• Inspection Regime: 100% dimensional inspection; In-process quality control at every stage




• Metrology Equipment: Mitutoyo CMM, Surface Roughness Testers, Optical Projectors, Hardness Testers




• Production Capacity: 1,000,000 units/month




Application Fields

• Automotive: Transmission shafts, steering column sleeves, shock absorber rods




• Hydraulics & Pneumatics: Cylinder sleeves, piston rods, valve bodies




• Industrial Machinery: Linear motion shafts, guide rails, precision bushings




• Energy Sector: Pump shafts, generator components




Commercial Terms

• Service Type: Custom OEM / ODM




• Drawing Format: PDF, DWG, STEP, IGS




• MOQ: 500 pcs (negotiable for prototypes)




• Lead Time: 15 days (samples); 30–40 days (mass production)




• Packaging: VCI anti-rust paper wrapping, individual plastic caps, export-grade plywood crates
